This filter applies a transformation recursively.
As in Unified Transform tool, this filter display a frame around the image with several kind of handles:
-

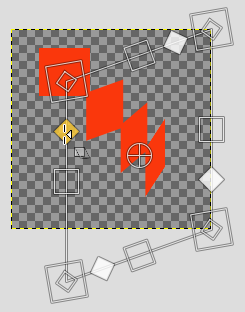

Diamonds for shearing
Shear
-
Squares for scaling horizontally or vertically.
Scale horizontally
-

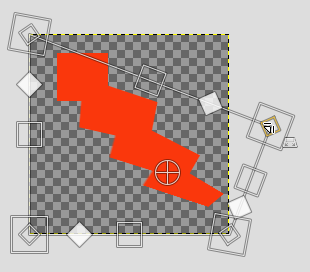

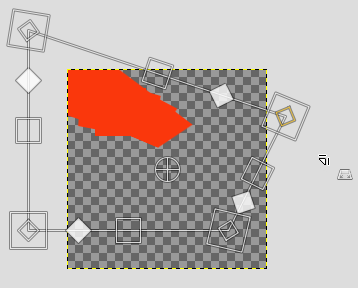

Small diamonds for changing perspective, in large squares for
Scaling in all directions.
and outside the frame, the mouse pointer comes with a rotation icon: click-and-drag to rotate around the pivot. This pivot is, by default, at the center of the image: click-and-drag to move it.
- Presets, “Input Type”, Clipping, Blending Options, Preview, Merge filter, Split view
-
![[Note]](images/note.png)
Note These options are described in Section 2, “Common Features”.
- First iteration
-
This option is used when the number of iterations has been set. Then the transformation starts at the position determined by this option.

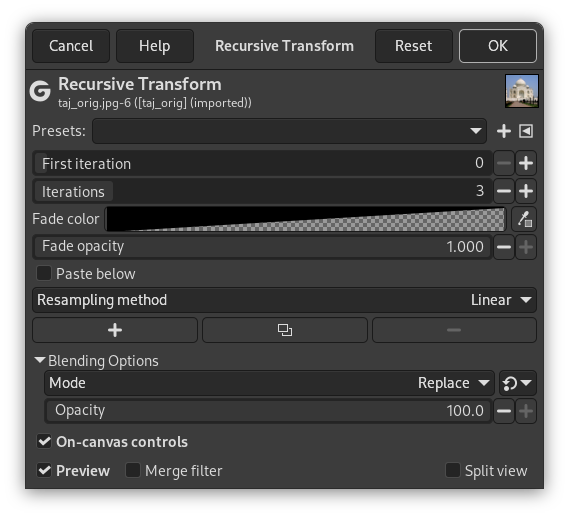

Figure 17.312. “Recursive Transform” filter options
Original image. Iterations = 3. Fade = 0.797
First Iteration = 2
- Iterations
-
Number of iterations.
- Fade color
-
The color that will be used to fade. Default is transparency. You can change this color selecting a new color by clicking in the color swatch or using the color picker on the right.
- Fade opacity
-
Amount by which to scale opacity of each iterated image.
- Paste below
-
Paste iterated images below each other.
- Resampling method
-
Interpolation methods are described in Interpolation
-
Add transform
,
Duplicate transform
,
Remove transform
-
To add, duplicate or remove transform.
